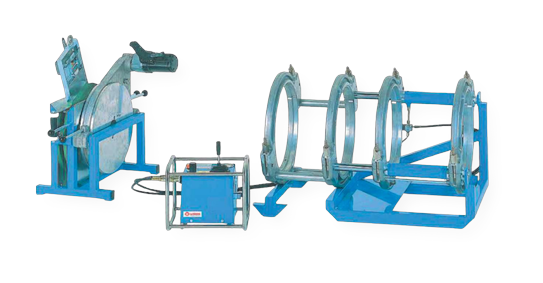

Widos W5100
German-built Widos butt fusion for 8″–16″ (200–450 mm) pipe, welding horizontal, on an incline, or vertical, with a removable fourth clamp for tees and tight spots.
Check Availability →Rental Rates
Pricing shown is the standard rate. Tooling and inserts are configured per job and confirmed on your quote.
What it is
The W5100 is Widos through and through: made in Germany, built on a rugged steel frame and base, and meant for field fabrication. It is a hydraulic butt fusion machine for pipe and fittings from 200 to 450 mm (8″ to 16″ IPS), and it welds in position, horizontal, on an incline, or dead vertical, so the machine goes to the joint instead of the joint coming to the machine.
The fourth master clamp comes off the base, turning the W5100 into a repair-style tool for welding tee pieces and for on-site work in small, confined spaces. The heating element is electronically adjusted with an indicator, and the control box takes a single power feed and handles the rest: output supplies for both the planer and the heater, plus the hydraulic power the weld needs.
Running metric pipework? A metric reducer insert set is available as an add-on; you will find it with our socket fusion kits and accessories.
Widos W5100 Specifications
| Size range | 200–450 mm (8″ – 16″ IPS) |
|---|---|
| Materials | HDPE, PP, PVDF |
| Power | 230V single phase; planer 1,400W, heater 3,500W |
| Positions | horizontal, incline, and vertical welds |
| Machine weight | 217 lb |
Specifications shown are from the current rental catalog. Confirm exact composition and availability with AHS Fusion Sales.
Power & Generator
The W5100 runs on 230V single phase. Single-source power from the control box means one feed in and two feeds out: 1,400W to the planer and 3,500W to the heater, with the hydraulics controlled from the same box. Details are in our power and generator requirements guide.
Materials
The W5100 fuses HDPE and PPR-RCT pipe, and the catalog rates it for PVDF as well. Tell us the material when you book and the machine ships set up for it.
Reserve a W5100
Send us your pipe size, footage, and job dates. We rent across the western U.S. and confirm tooling on your quote. Questions? Call (702) 902-2911.
