Ritmo Elektra S

Rental Rates

Pricing shown is the standard rate. Tooling and inserts are configured per job and confirmed on your quote.

What it is

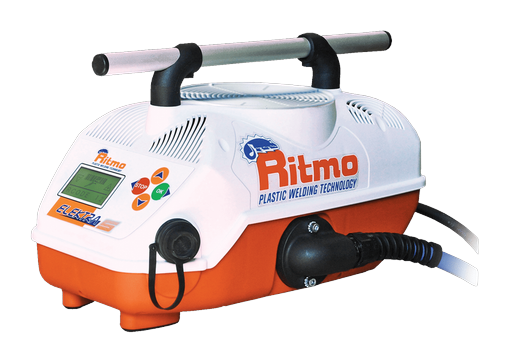

The Elektra S is Ritmo’s service-size electrofusion processor. Scan the barcode on the fitting per ISO 13950 and the machine sets the welding parameters itself; the laser scanner keeps reading through glare and hard contrast, and you can always key in voltage and time by hand from the menu. On the 110V version it covers fittings from ½″ to 12″ IPS.

It is built for the trench, not the bench. The electronics ride inside a high-strength techno polymer shell, and Ritmo’s Defender system seals the unit to IP 54 against water and dust. At 18.5 lb with cable and scanner, it goes over the shoulder and down the ladder without a second thought.

Traceability is the whole point of electrofusion, and the Elektra S delivers it: ISO 12176-3 operator traceability, ISO 12176-4 fitting and pipe traceability, 8,000 welds in memory, and PDF or CSV reports straight off the USB port. Universal 90-degree connectors (4.0–4.7 mm) mean no adapters between you and the fitting. Welding couplings and saddles above 12″? Step up to the Elektra M.

Ritmo Elektra S Specifications

Power & Generator

The Elektra S runs on 110V or 230V, 50/60 Hz. Off grid, a 3.5–4 kVA generator gives the processor the clean, steady current an electrofusion weld demands. Details are in our power and generator requirements guide.

Materials

The Elektra S welds HDPE electrofusion fittings. Tell us your fitting sizes and coupling brand when you book and we will confirm the processor is matched to the job.
