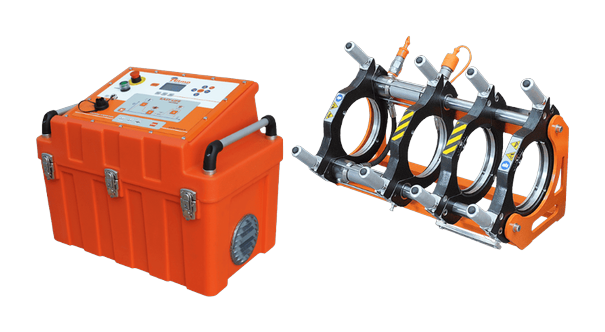

Ritmo Basic 160 Easy Life
Ritmo butt fusion for 1″–5″ (40–160 mm) pipe, with the Easy Life gearcase logging every weld it makes.
Check Availability →Rental Rates
Pricing shown is the standard rate. Tooling and inserts are configured per job and confirmed on your quote.
What it is
The Basic 160 Easy Life is the machine you bring when the spec sheet asks for proof. A welded steel frame, four aluminum clamps, and two hydraulic cylinders with drip-free quick couplings give you a stable, repeatable platform for 1″–5″ pipe.
The Easy Life gearcase is the difference maker. It walks the operator through the cycle, holds 50 preset welding cycles, and logs every joint to an internal memory that stores 4,000 cycles. Weld records export as PDF, and the unit is Wi-Fi ready with Ritmo’s SET & GO PRO app. When the inspector wants documentation, you hand it over instead of arguing.
Configured with the drag bar, it welds fittings and flange necks without any additional equipment. If you do not need logging, the Compact 160 covers the same range for less.
Ritmo Basic 160 Easy Life Specifications
| Working range | 40–160 mm; 1″ IPS – 5″ IPS |
|---|---|
| Power supply | 110V or 230V single phase, 50/60 Hz |
| Suggested generator | 3.5–4 kVA |
| Weld memory | 4,000 cycles, PDF export, Wi-Fi ready |
| Weight (standard composition) | 165 lb |
Specifications shown are from the current rental catalog. Confirm exact composition and availability with AHS Fusion Sales.
Power & Generator
The Basic 160 Easy Life runs on 110V or 230V single phase, 50/60 Hz. Off grid, a 3.5–4 kVA generator covers the facer, heater plate, and gearcase comfortably. Details are in our power and generator requirements guide.
Materials
The Basic 160 Easy Life fuses HDPE and PPR-RCT pipe. PP-R facer blades are available, so tell us the material when you book and the machine ships set up for it.
Reserve a Basic 160 Easy Life
Send us your pipe size, footage, and job dates. We rent across the western U.S. and confirm tooling on your quote. Questions? Call (702) 902-2911.
