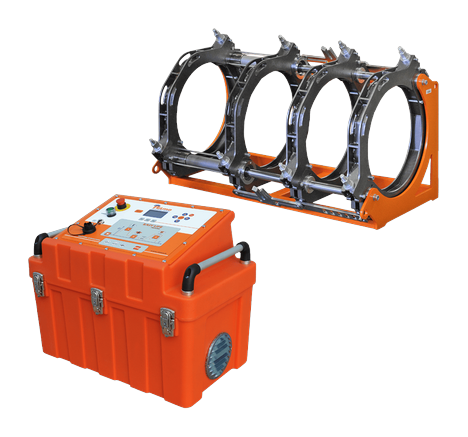

Ritmo Delta 500 Easy Life
Ritmo’s steel-clamp butt fusion machine for 8″–18″ (200–500 mm) HDPE and PPR-RCT pipe, with a logged report for every weld.
Check Availability →Rental Rates
Pricing shown is the standard rate. Tooling and inserts are configured per job and confirmed on your quote.
What it is
The Delta 500 Easy Life is the big-bore member of Ritmo’s Easy Life line: a welded steel frame, four steel clamps, and two hydraulic cylinders with drip-free quick couplings, sized for pressure pipe from 8″ to 18″. When the submittal calls for transmission main or large process pipe, this is the frame that holds it.
The Easy Life gearcase is the control center. It manages the welding cycle so joints come out precise and repeatable, and its internal memory works as a datalogger, with welds exportable as PDF reports. The system is Wi-Fi ready and pairs with the SET & GO PRO app.
The heating plate is Teflon-coated, with an independent verification thermometer for temperature checks. The electric milling cutter carries long-lasting blades, a safety microswitch, and motor overload protection, and the detach device triggers the heating plate release during the exchange phase so plate swaps stay quick and clean.
Delta 500 Easy Life Specifications
| Working range | 200–500 mm; 8″ IPS – 18″ IPS |
|---|---|
| Power supply | 400V three phase, 50/60 Hz |
| Suggested generator | 12 kVA |
| Weld memory | 4,000 cycles, PDF export, Wi-Fi ready |
| Weight (standard composition) | 921 lb |
Power & Generator
The Delta 500 Easy Life runs on 400V three-phase power. Suggested generator: 12 kVA. Details are in our power and generator requirements guide.
Materials
The Delta 500 Easy Life fuses HDPE and PPR-RCT pipe.
Put the Delta 500 Easy Life on your job
Send us your pipe size, footage, and job dates. We will match the machine and tooling to your project anywhere in the western U.S.
