Ritmo Delta 250 Trailer
Ritmo’s trailer-mounted butt fusion machine for 2″–8″ (75–250 mm) HDPE and PPR-RCT pipe, powered and welding minutes after you park it.
Check Availability →Rental Rates
Pricing shown is the standard rate. Tooling and inserts are configured per job and confirmed on your quote.
What it is

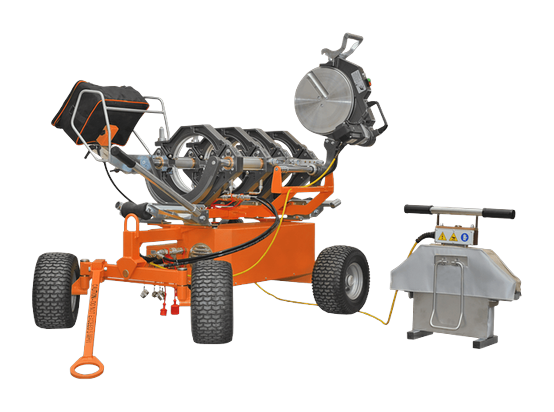

The Delta 250 Trailer is Ritmo’s electro-hydraulic butt fusion machine built onto its own trailer, with two steering wheels that make moving and positioning it on the job site easy. Every functional element rides on board, so the rig is powered and ready in just a few moments, and two lateral rollers take the fight out of loading and unloading pipe.
The machine body lifts off the frame when the joint is down in the excavation, and it reconfigures for welding fittings and flange necks between the third and fourth clamp. The electric milling cutter is on board with its own coupling system, safety microswitch, and thermal motor protection, and SmartLock inserts lock and release without any tools.
The removable control panel carries a GPS device for job site traceability. Easy Life automation walks the operator through programming and welding, stores up to 20 favorite work parameters, and logs up to 4,000 cycles as downloadable PDF reports through a USB port. It welds to ISO 21307 high pressure and ASTM F2620.
Delta 250 Trailer Specifications
| Working range | 75–250 mm; 2″ IPS – 8″ IPS |
|---|---|
| Power supply | 110V or 230V single phase |
| Standards | ISO 21307 high pressure; ASTM F2620 |
| Traceability | GPS on board, 4,000 logged cycles |
| Weight (standard composition) | 485 lb |
Power & Generator
The Delta 250 Trailer runs on 110V or 230V single-phase power, so it plugs into whichever supply your site has. Details are in our power and generator requirements guide.
Materials
The Delta 250 Trailer fuses HDPE and PPR-RCT pipe.
Put the Delta 250 Trailer on your job
Send us your pipe size, footage, and job dates. We will match the machine and tooling to your project anywhere in the western U.S.
