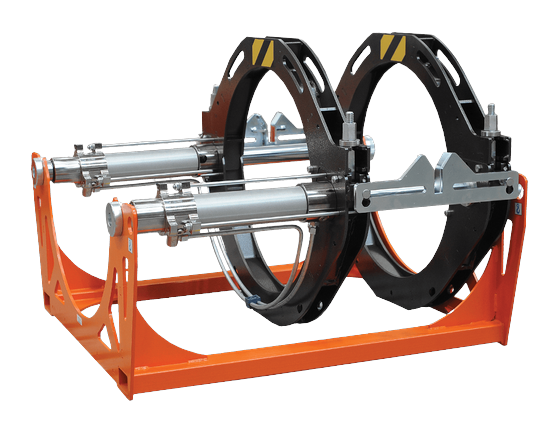

Ritmo Compact 630
Ritmo’s two-clamp butt fusion machine for 10″–24″ (280–630 mm) HDPE and PPR-RCT pipe, with a detachable body built for the trench.
Check Availability →Rental Rates
Pricing shown is the standard rate. Tooling and inserts are configured per job and confirmed on your quote.
What it is
The Compact 630 puts 24″ capacity in a two-clamp body that detaches from its frame, so you can work on the ground, suspended, or in tight quarters where a full four-clamp spread will not fit. For big-bore work in the trench, that compactness is the whole point.
The electro-hydraulic gearcase rides in a protective box and gives you precise, powerful control of the welding cycle, including a Dual Pressure mode. Clamping, facing, and fusion pressure all come from the power unit, so joint quality holds steady from the first weld to the last.
The heating plate is Teflon-coated, with an independent verification thermometer for temperature checks. The electric milling cutter carries long-lasting blades, a safety microswitch, and motor overload protection, and the detach device triggers the heating plate release during the exchange phase to keep plate swaps quick.
Compact 630 Specifications
| Working range | 280–630 mm; 10″ IPS – 24″ IPS |
|---|---|
| Power supply | 230V or 400V three phase, 50/60 Hz |
| Absorbed power | 12,350W |
| Suggested generator | 12 kVA |
| Weight (standard composition) | 1,080 lb |
Power & Generator
The Compact 630 runs on 230V or 400V three-phase power. Suggested generator: 12 kVA. Details are in our power and generator requirements guide.
Materials
The Compact 630 fuses HDPE and PPR-RCT pipe.
Put the Compact 630 on your job
Send us your pipe size, footage, and job dates. We will match the machine and tooling to your project anywhere in the western U.S.
