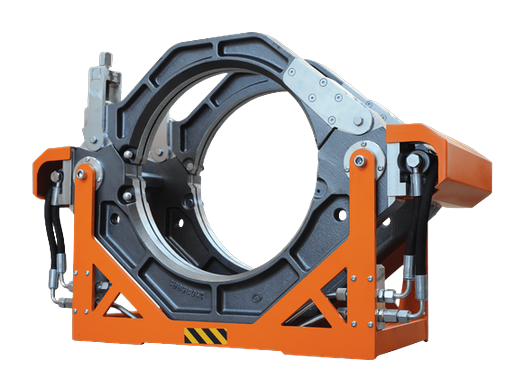

Ritmo Compact 355
Ritmo’s two-clamp butt fusion machine for 4″–12″ (125–355 mm) HDPE and PPR-RCT pipe, built for 12-inch work in limited space.
Check Availability →Rental Rates
Pricing shown is the standard rate. Tooling and inserts are configured per job and confirmed on your quote.
What it is
The Compact 355 is Ritmo’s minimalist take on a 12-inch butt fusion machine. The body is just two clamps and detaches easily from the frame, so you can weld on the ground, suspended, or in any of those spots where a full four-clamp frame simply will not fit.
Minimalist does not mean stripped down. The electro-hydraulic gearcase rides in a protective box and keeps fusion pressure precise, including in Dual Pressure mode. The heating plate is Teflon-coated with an independent verification thermometer, the milling cutter runs long-lasting blades with motor overload protection, and SmartLock inserts lock and release without tools.
The Master 250 adapter lets the machine run Basic 250 model inserts, which keeps tooling costs down if you run both sizes. PP-R pipe blades for the cutter are available on request.
Compact 355 Specifications
| Working range | 125–355 mm; 4″ IPS – 12″ IPS |
|---|---|
| Power supply | 230V single phase, 50/60 Hz |
| Absorbed power | 4,900–5,300W |
| Suggested generator | 8–8.5 kVA |
| Master 250 adapter | Yes, runs Basic 250 inserts |
| Weight (standard composition) | 357 lb |
Power & Generator
The Compact 355 runs on 230V single-phase power. Suggested generator: 8–8.5 kVA. Details are in our power and generator requirements guide.
Materials
The Compact 355 fuses HDPE and PPR-RCT pipe.
Put the Compact 355 on your job
Send us your pipe size, footage, and job dates. We will match the machine and tooling to your project anywhere in the western U.S.
