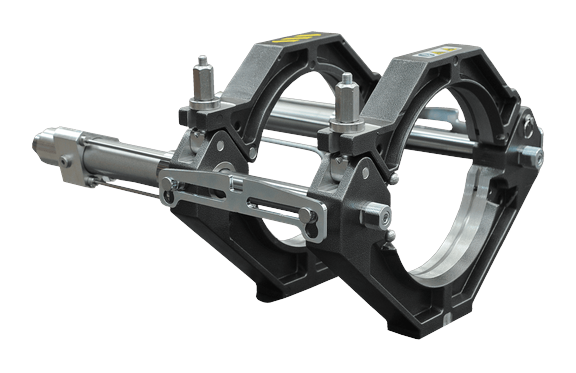

Ritmo Compact 250
Ritmo butt fusion for 2″–8″ (75–250 mm) pipe, compact enough to work suspended or in tight quarters.
Check Availability →Rental Rates
Pricing shown is the standard rate. Tooling and inserts are configured per job and confirmed on your quote.
What it is
The Compact 250 takes the two-clamp, tight-quarters idea up to 8″ pipe. The machine body detaches from its frame, so it works on the ground, suspended, or in the kind of cramped excavation where a full-frame machine is a non-starter.
Ritmo’s patented SmartLock system locks and releases reduction inserts with no tools, which cuts setup time on every joint. A detach device supports the heating plate and mechanically kicks it free during the exchange phase, and the electro-hydraulic gearcase manages pressure precisely, including in Dual Pressure mode.
For mid-size water, sewer, and irrigation runs from 2″ to 8″, this is the fast, packable option. Need weld records on the same range? That is the Basic 250 Easy Life.
Ritmo Compact 250 Specifications
| Working range | 75–250 mm; 2″ IPS – 8″ IPS |
|---|---|
| Power supply | 110V or 230V single phase, 50/60 Hz |
| Absorbed power | 3,420W |
| Suggested generator | 5.5–6 kVA |
| SmartLock inserts | Yes |
| Weight (standard composition) | 237 lb |
Specifications shown are from the current rental catalog. Confirm exact composition and availability with AHS Fusion Sales.
Power & Generator
The Compact 250 runs on 110V or 230V single phase, 50/60 Hz, drawing about 3,420W. Off grid, a 5.5–6 kVA generator covers the facer, heater plate, and gearcase with margin. Details are in our power and generator requirements guide.
Materials
The Compact 250 fuses HDPE and PPR-RCT pipe. PP-R facer blades are available, so tell us the material when you book and the machine ships set up for it.
Reserve a Compact 250
Send us your pipe size, footage, and job dates. We rent across the western U.S. and confirm tooling on your quote. Questions? Call (702) 902-2911.
Check Availability
